Mongoose X Saw

Precision Concrete Engraving—Built for Your Work

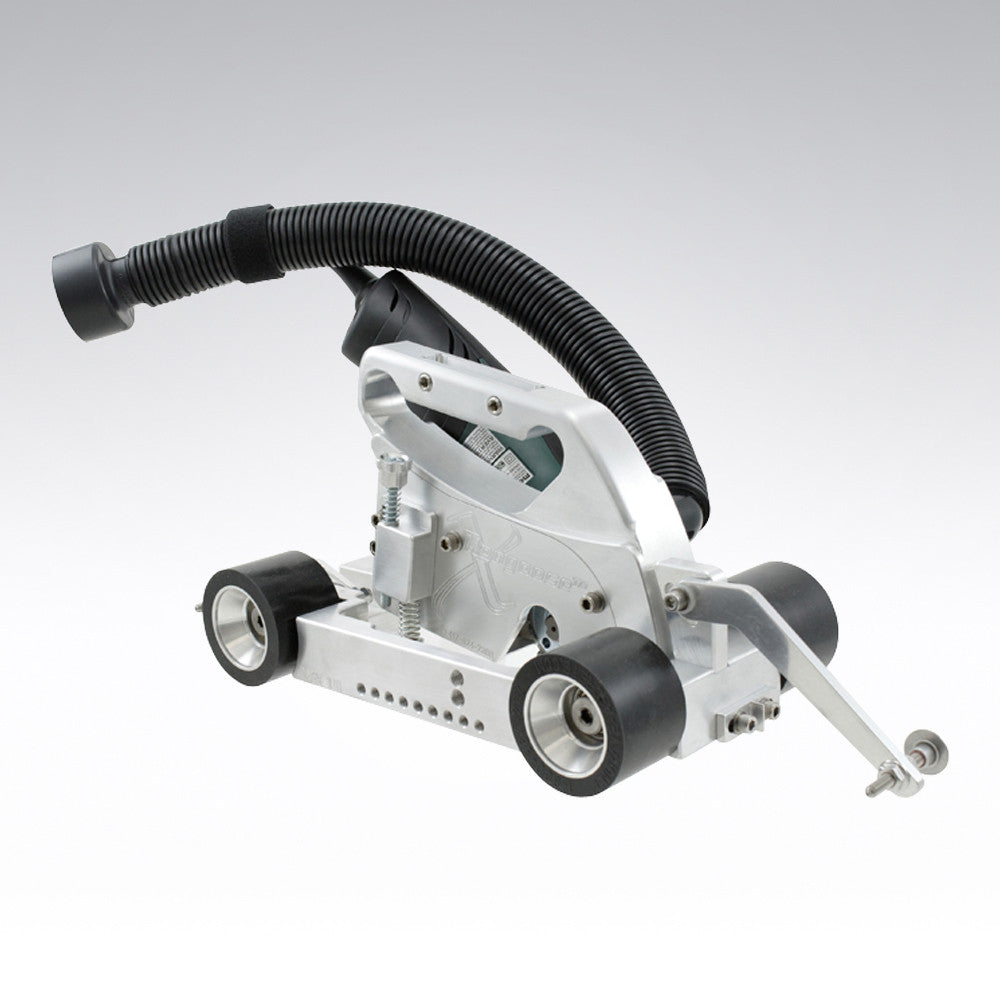

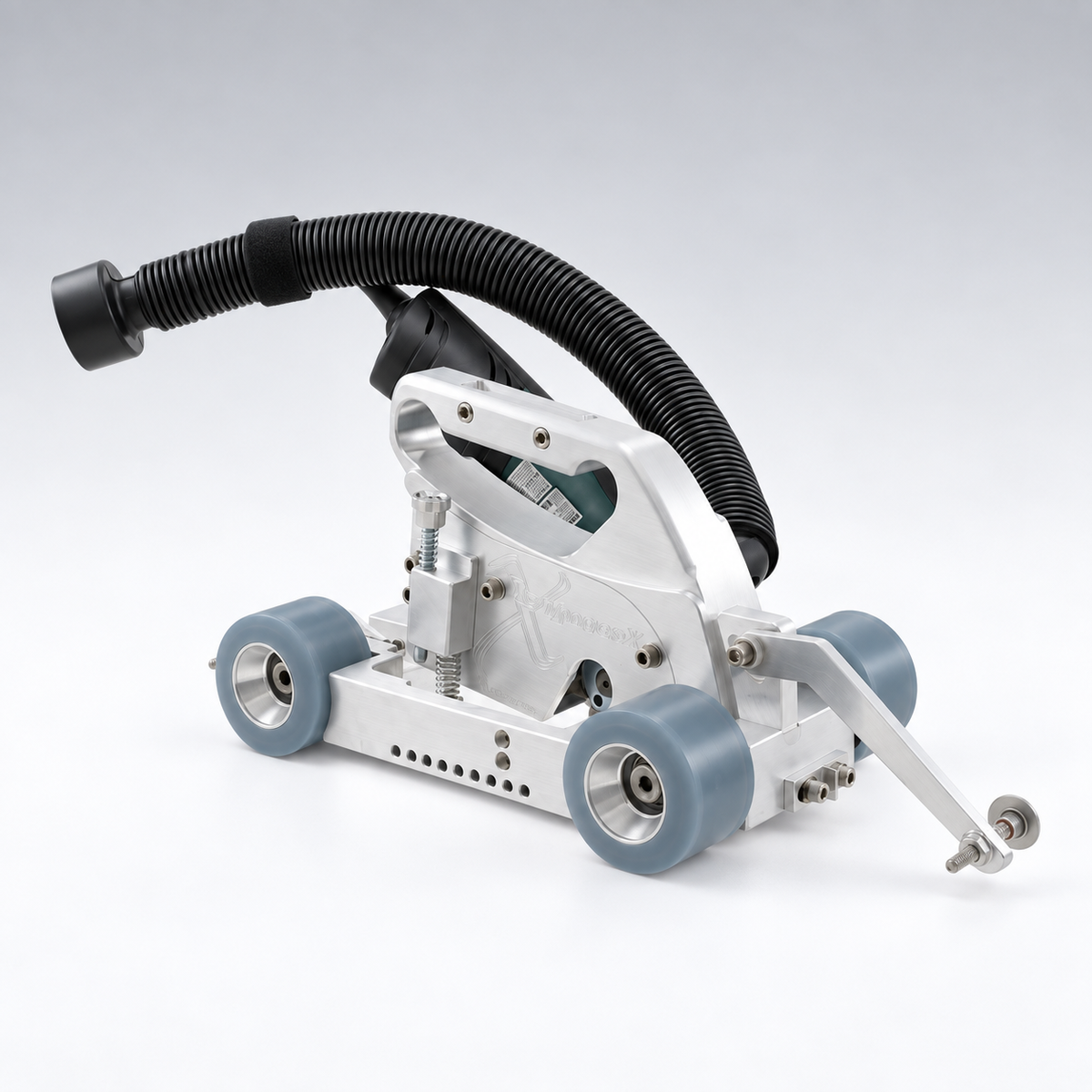

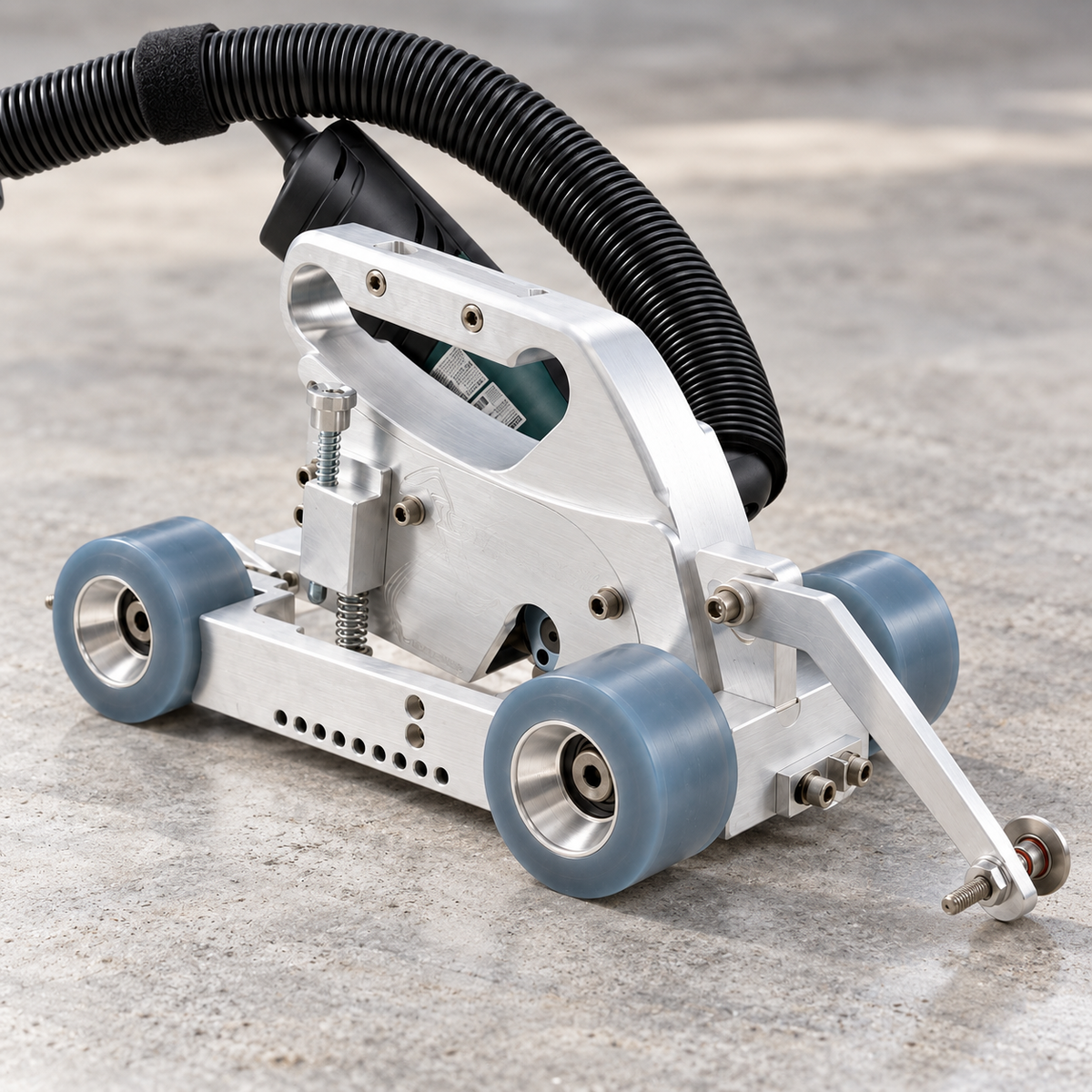

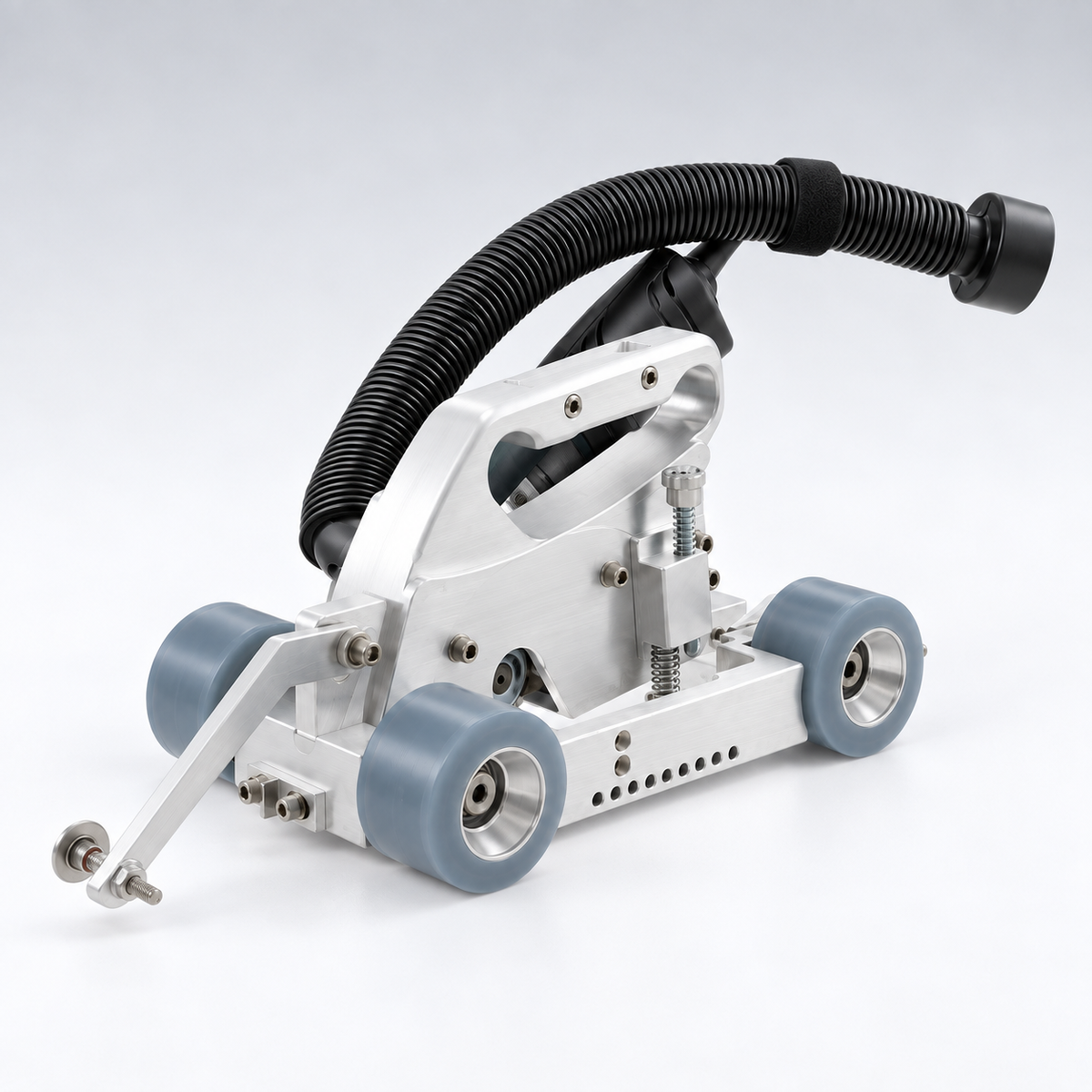

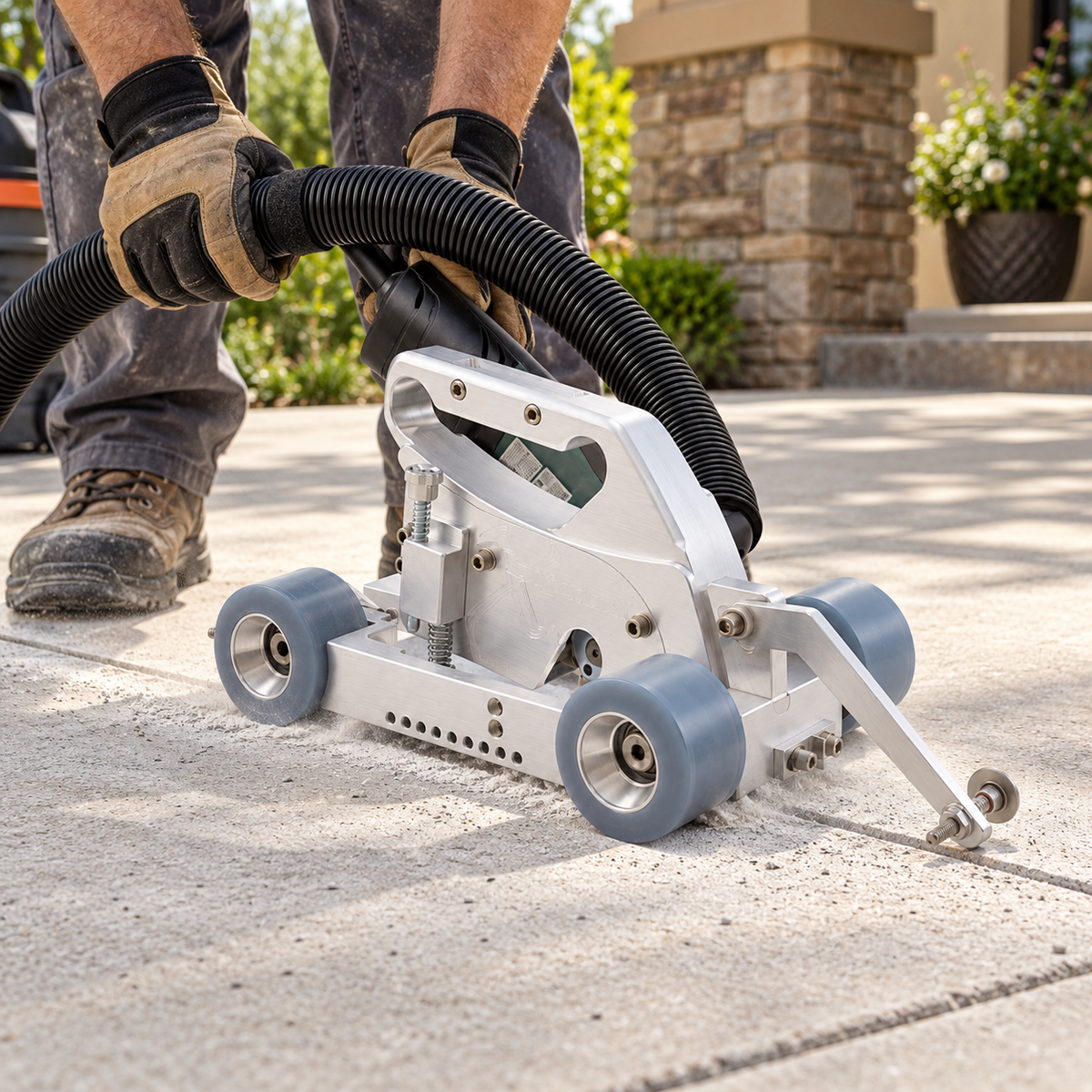

The Mongoose X is a lightweight, precision-machined concrete engraving saw designed for accurate layout cutting, controlled starts and stops, and smooth movement across concrete.

Use the compact cutting unit close to the floor for maximum control, or customize your Mongoose X with optional accessories for stand-up operation, additional groove widths, circles and arcs.

Choose the add-ons you need above and build a system that fits the type of engraving work you perform.

Mongoose X Saw Includes

• Mongoose X concrete engraving saw
• 3.1" × .125" premium USA diamond blade
• Front and rear flip-up alignment pointers
• Integrated side vacuum port
• Adjustable cutting-depth control
• Smooth, high-traction urethane wheels
• Fitted protective hard case with foam insert

Add-on accessories are not included with the base saw unless selected above.

Customize Your Mongoose X

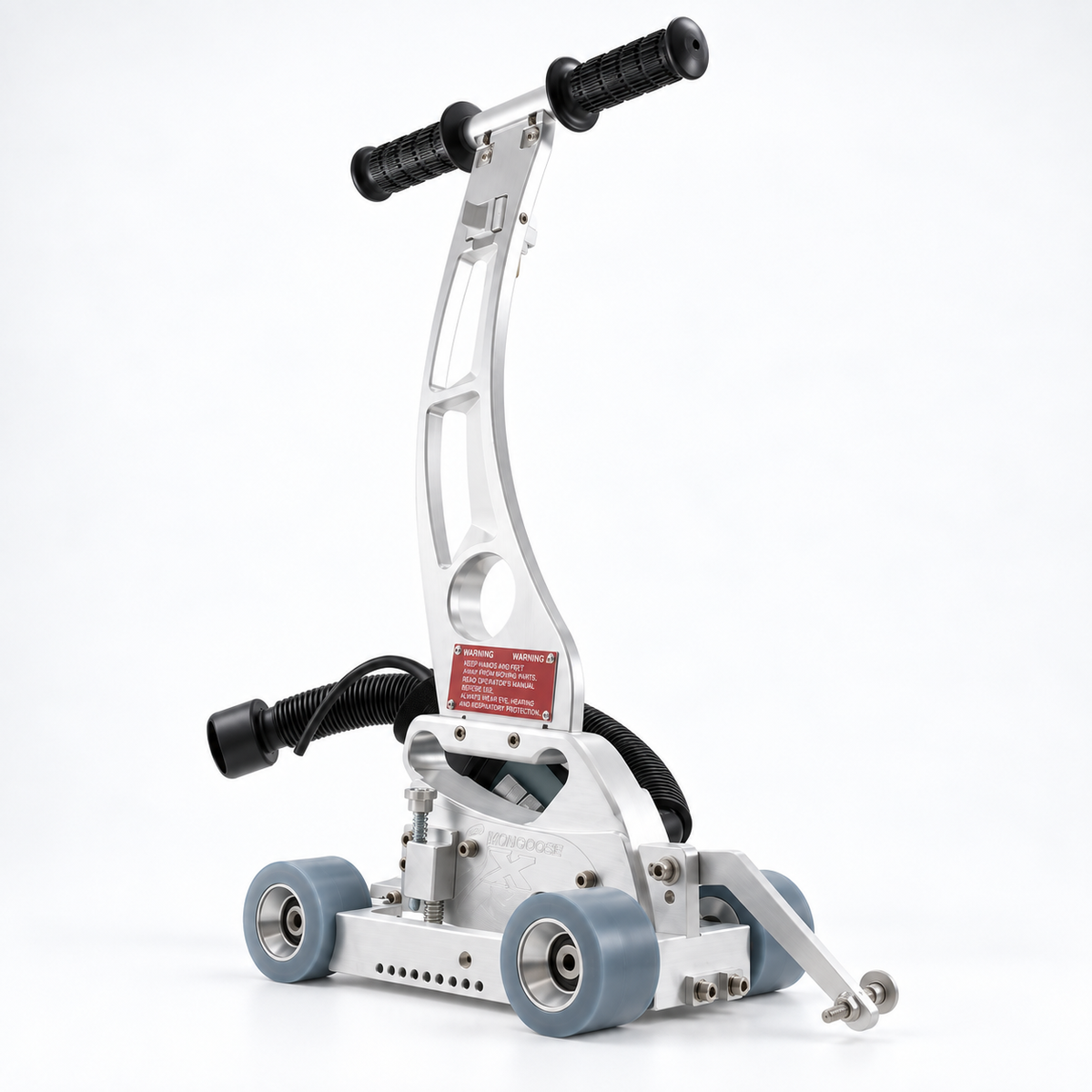

Stand-Up Handle

Add the removable stand-up handle to operate the Mongoose X while standing upright. The handle includes an extension on/off switch and attaches with two set screws.

Remove the handle whenever you need low-profile operation, closer access or more direct control of the cutting unit.

Additional Blade Widths

Choose additional 3.1" premium diamond blades to create different decorative groove widths:

• .090" blade: Narrow decorative lines
• .125" blade: Standard grout-line effects
• .250" blade: Wider decorative grooves
• .375" blade: Bold accent lines

One .125" blade is included with the base Mongoose X Saw. Additional blades are available as optional add-ons.

Circle and Arc Layout Accessories

Expand the Mongoose X with the optional center-pivot system, connecting tubes and trammel-point layout accessories.

These attachments allow the saw to follow a controlled radius for engraving:

• Circles
• Arcs
• Circular borders
• Circular tile layouts
• Medallion surrounds
• Custom radial designs

Select the appropriate layout accessories above or choose the complete Mongoose X ProPack if you want the full system.

Control Every Start and Stop

The spring-loaded cutting head gives the operator precise control over where each groove begins and ends. Press down to engage the blade, then release pressure and the cutting head lifts the blade out of the groove.

Precise, Adjustable Cutting Depth

A fine-thread depth-control screw allows the engraving depth to be adjusted for the project. The Mongoose X provides a maximum cutting depth of approximately 1/4".

Follow Your Layout

Front and rear flip-up pointers help align the Mongoose X with chalk lines and other layout markings. The open blade port provides additional visibility near the blade while cutting.

The pointers can be flipped out of the way when working close to a wall or making reverse cuts.

Dust Collection at the Source

The side-mounted vacuum port connects to an appropriate dust-collection system and helps capture concrete dust near the blade. Its position keeps the vacuum hose away from the primary cutting path.

Always follow applicable silica-dust safety requirements and use appropriate personal protective equipment.

Designs You Can Create

With the base Mongoose X Saw:

• Straight lines and borders
• Tile and grout-line patterns
• Slate and block layouts
• Running-bond patterns

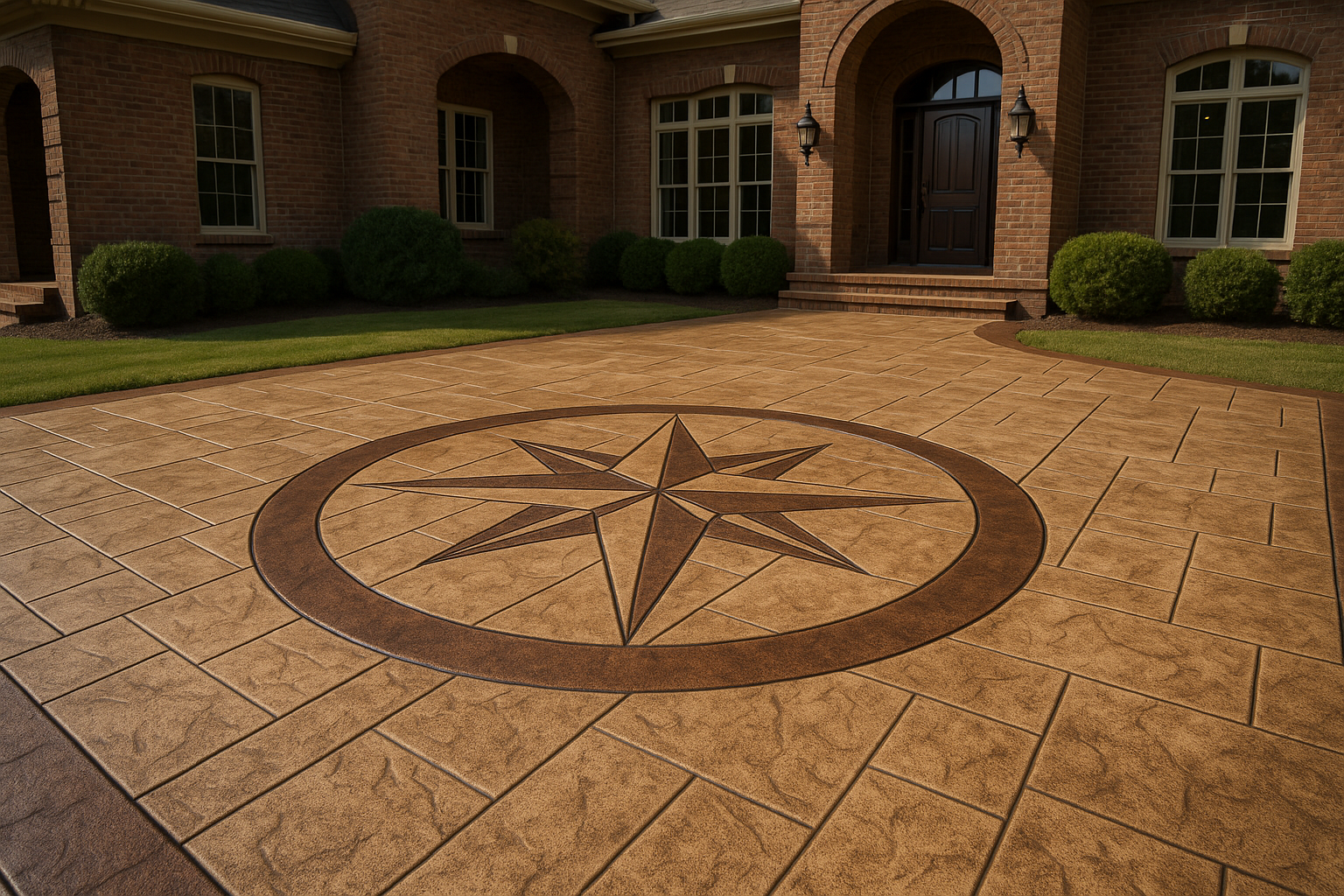

• Random block and ashlar designs
• Squares and rectangles
• Triangles and polygons
• Custom geometric patterns

With the optional circle-layout accessories:

• Circles and arcs
• Circular tile patterns
• Circular borders
• Radial designs
• Medallion surrounds

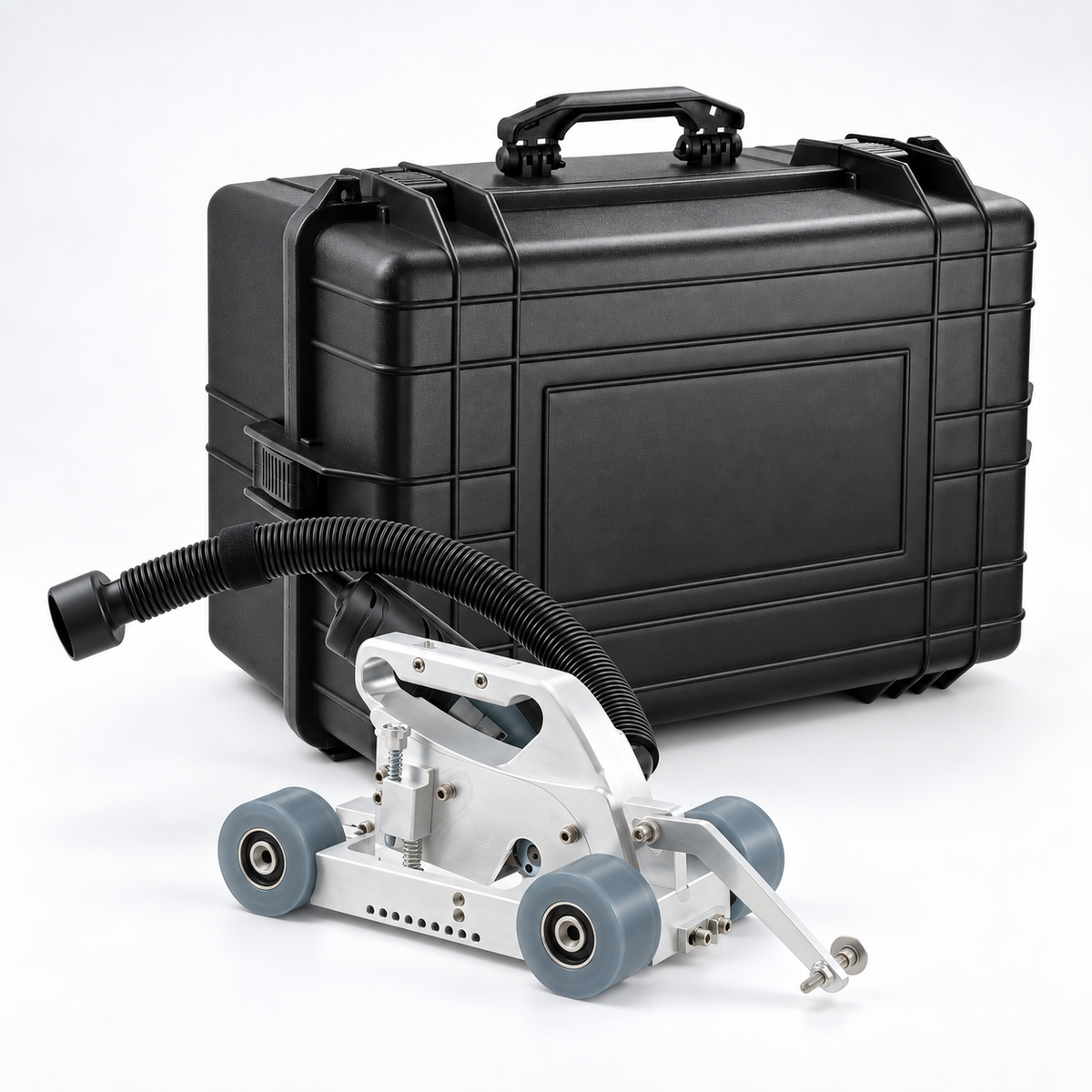

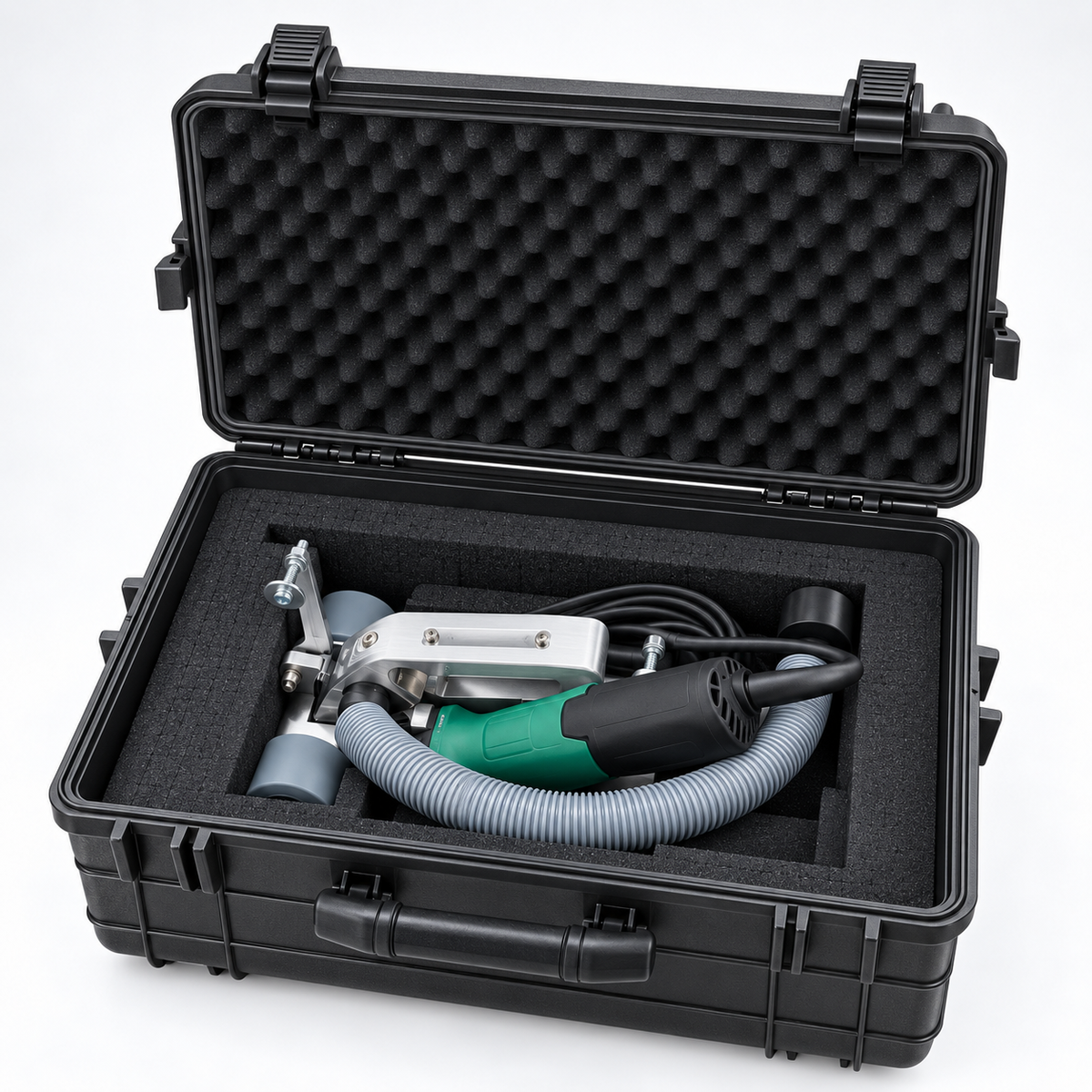

Fitted Protective Hard Case Included

Every Mongoose X Saw includes a rugged, hard-sided carrying case designed to protect the cutting unit and keep its primary components organized.

The fitted foam insert holds the Mongoose X, motor, hose and related components securely in place. Egg-crate foam inside the lid provides additional cushioning during transportation.

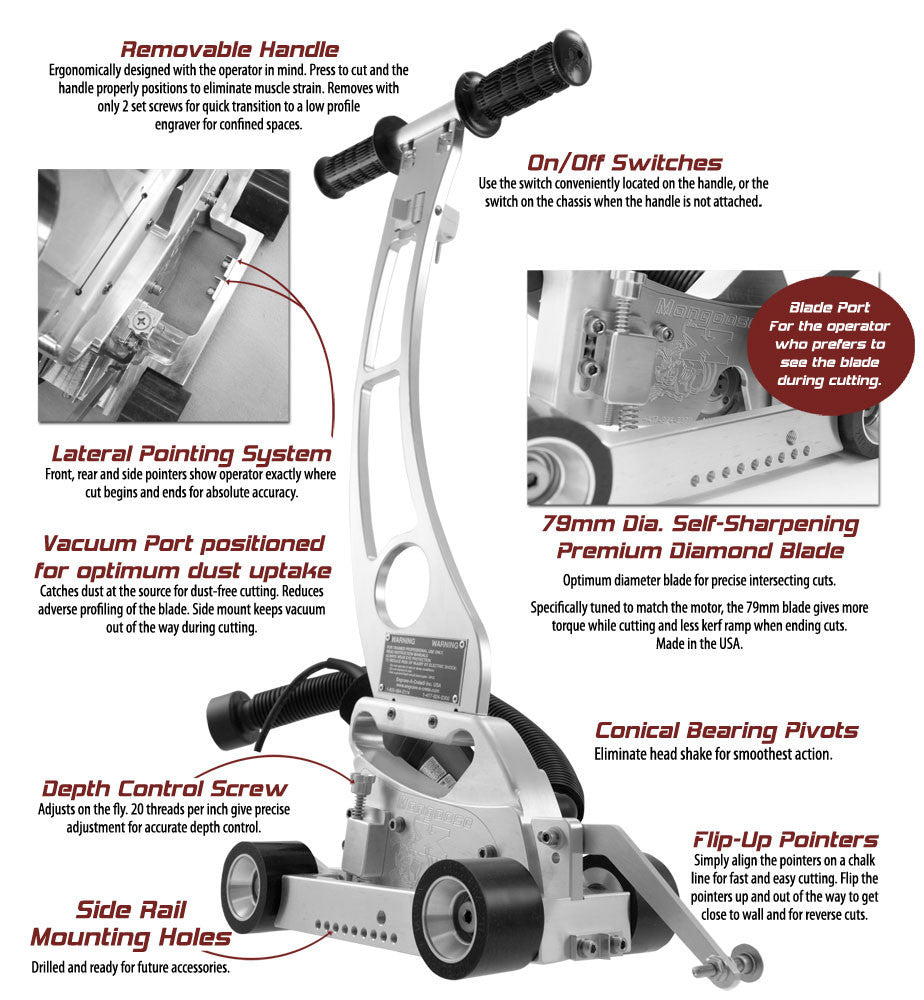

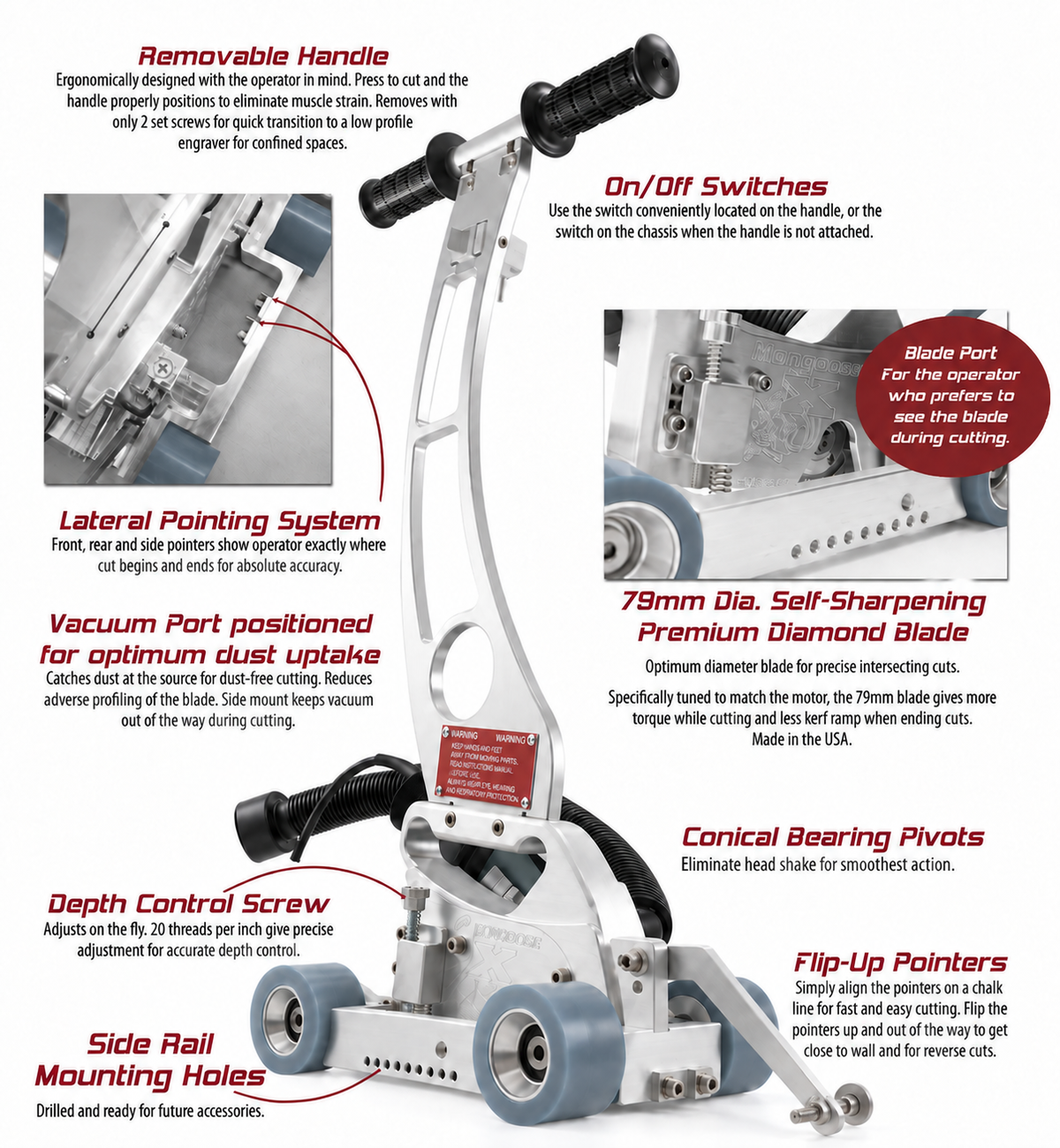

Mongoose X Features

• Spring-loaded cutting head
• Adjustable cutting depth
• Maximum cutting depth of approximately 1/4"
• Front and rear flip-up alignment pointers
• Open blade port for improved visibility
• Side-mounted vacuum connection
• Smooth, high-traction urethane wheels
• Conical-bearing pivots for smooth head movement
• Side-rail mounting holes for compatible accessories
• Precision-machined aluminum construction
• Lightweight and easy to reposition
• Fitted protective hard case
• Made in the USA

Specifications

• Blade diameter: 3.1"
• Included blade width: .125"
• Available blade widths: .090", .125", .250" and .375"
• Maximum cutting depth: Approximately 1/4"
• Minimum side cut from a wall: Approximately 4"
• Minimum front cut from a wall: Approximately 4.5"
• Tool dimensions: Approximately 13" × 7.75" × 9.5"
• Tool weight: Approximately 15.82 lb.
• Construction: Precision-machined 6061-T6 billet aluminum
• Power: 120V unless a different voltage option is selected or specified

Warranty

• One-year warranty on parts
• Lifetime warranty on aluminum components

Want the Complete System?

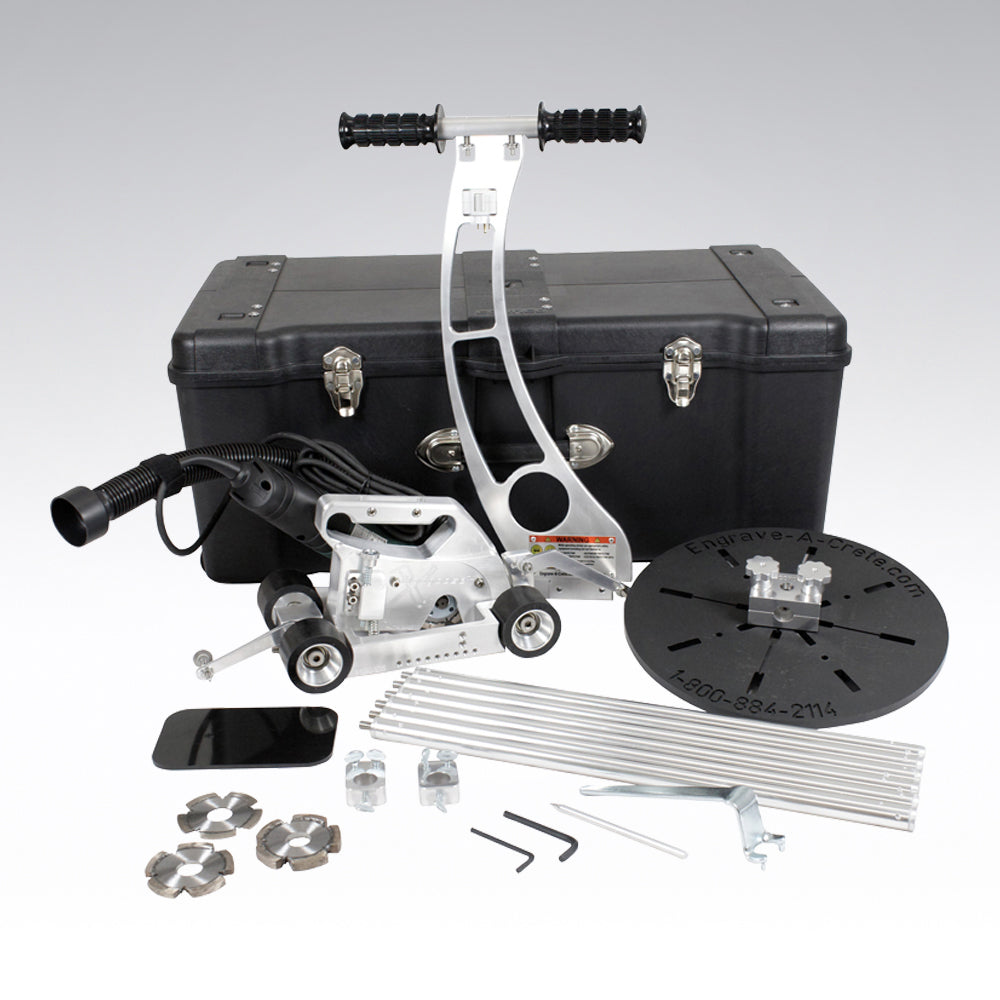

Choose the Mongoose X ProPack for a complete contractor package that includes the Mongoose X Saw, multiple blade widths, removable stand-up handle, center pivot, connecting tubes and trammel-point layout accessories.

The ProPack is ideal for contractors who want the full range of straight-line, geometric, circular and curved-layout capabilities in one package.
