Capabilities

  • Tile Designs
  • Straight Lines
  • Slate / Block
  • Random Ashlar Slate
  • Running Bond Block
  • Random Block
  • Geometric Designs
  • Squares
  • Triangles
  • Rectangles
  • Polygons

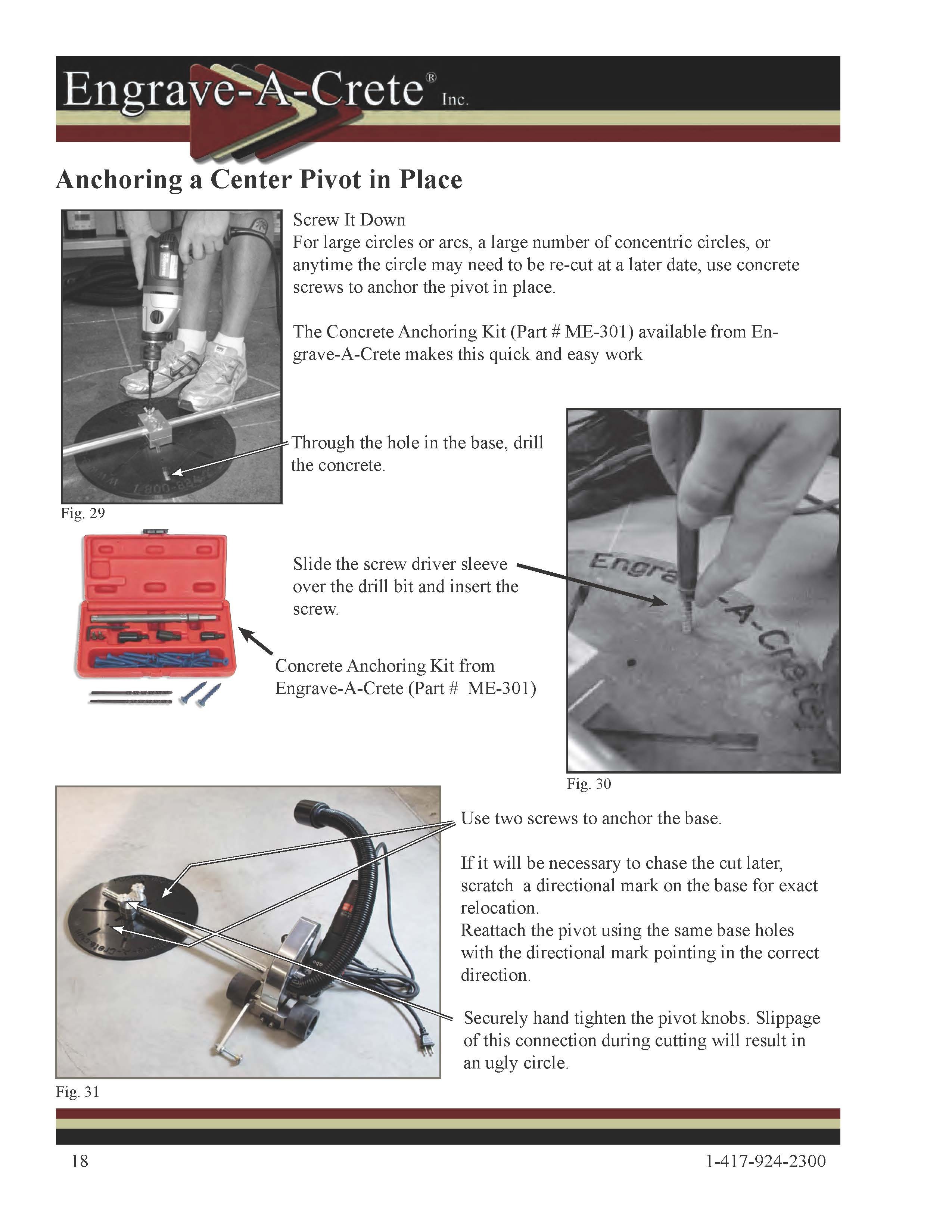

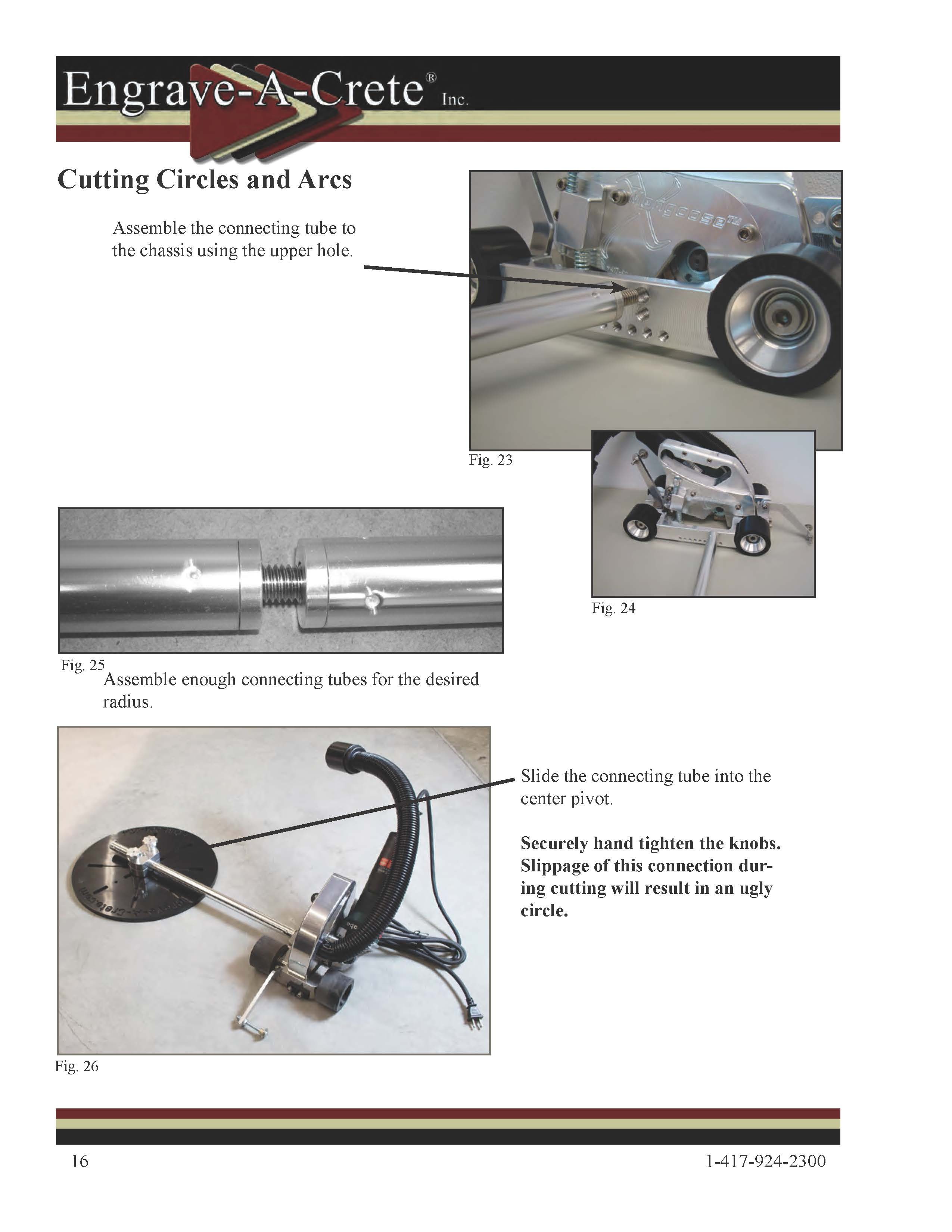

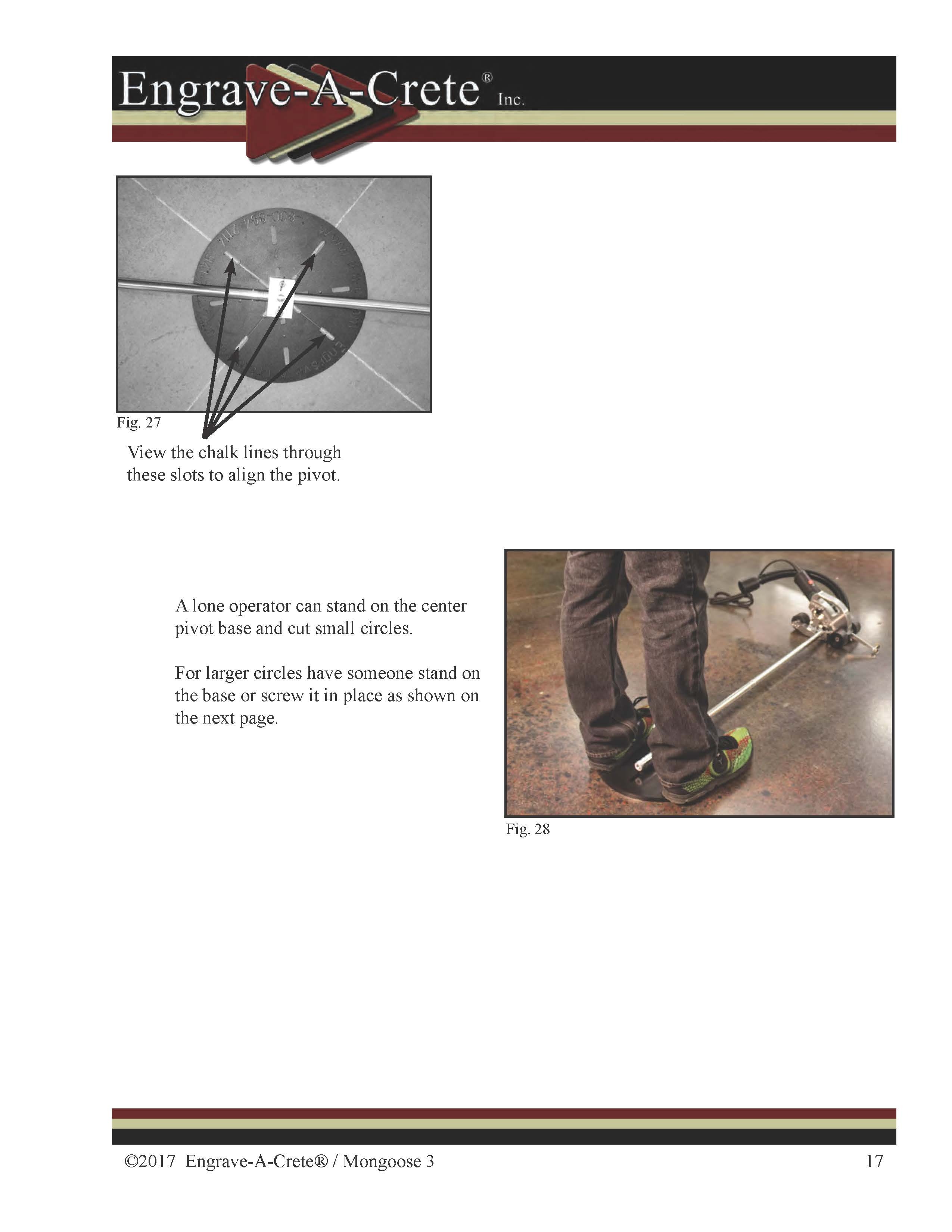

  • Perfect Circles – using center pivot
  • Perfect Arcs – using center pivot

Full One Year Warranty On All Parts - Lifetime Warranty on Aluminum Parts

Design

Meet the newest member of the famous Mongoose™ family of decorative concrete engravers. The Mongoose 3 features innovative three-wheel design coupled with the quality, dependability and versatility people have come to expect from the Mongoose name.

Accuracy

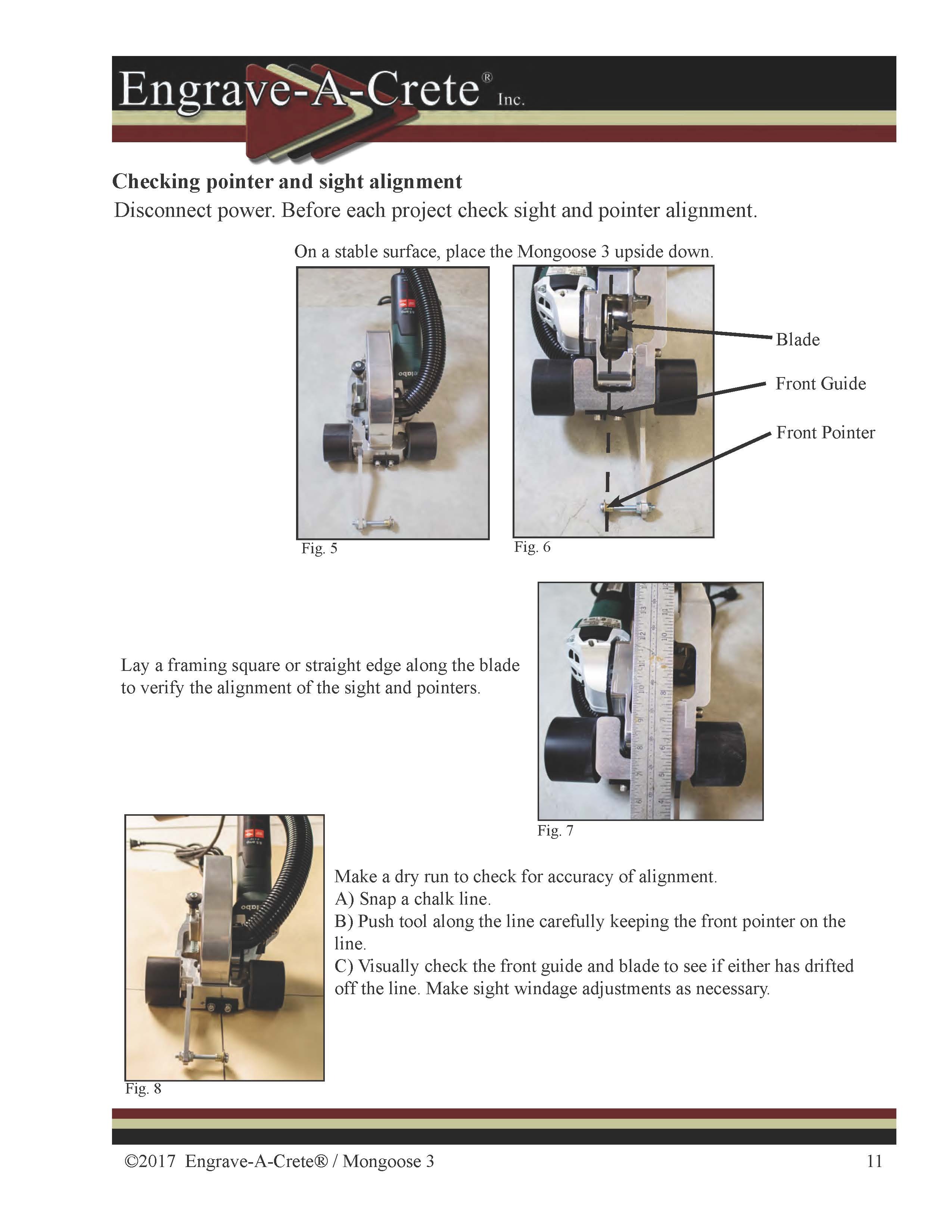

Front and rear pointers make following chalk lines a cinch. Easily visible ledge near the blade port allows operator to mark exactly where cut begins based on blade wear, reducing over or under cutting at intersections. Pointers flip up and out of the way when not in use.

Safety

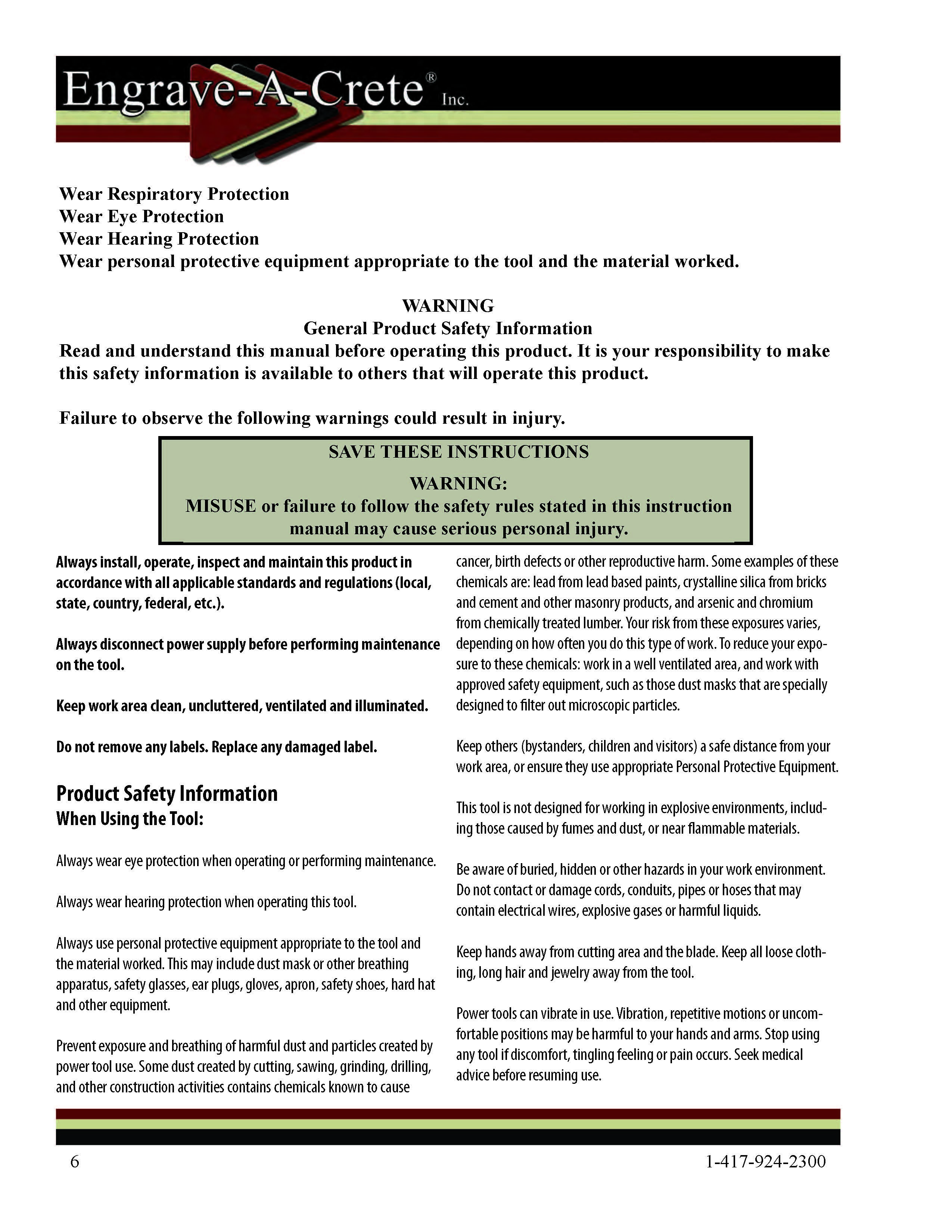

Strategically placed vacuum port captures dust at the point of cutting, greatly reducing dangerous, lung-damaging airborne silica particles. Blade is visible, but housed within the tool to prevent vicious accidents.

Power

10,000 RPM motor is specifically tuned to match the blade resulting in more torque while cutting and less kerf ramp when ending cuts.

Ease of Use

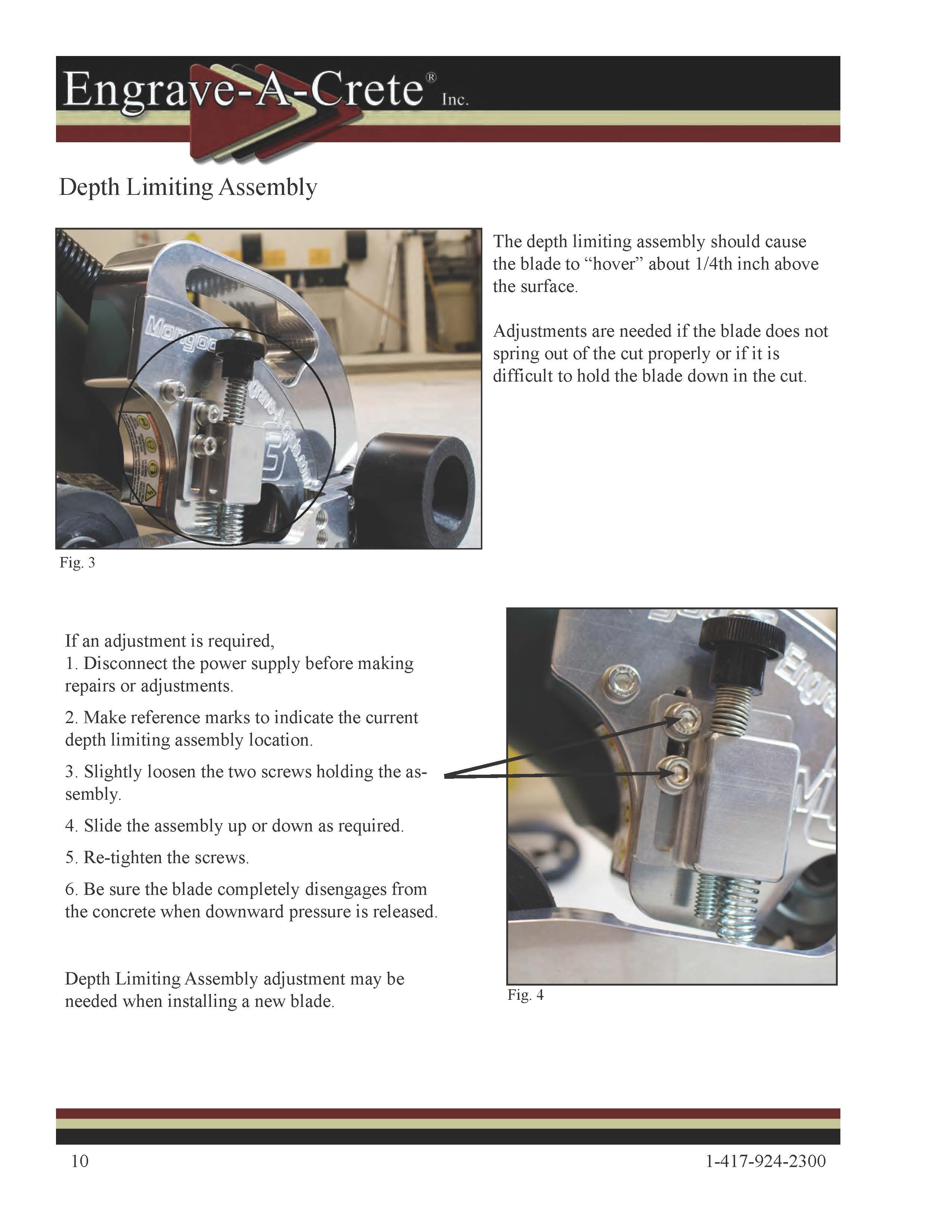

Spring-loaded cutting head gives the operator full control of starts and stops. Simply push down to cut, then release and the blade pops out of the cut. Wide wheels provide the stability you need and the adjustable wheel base adds flexibility. Comes equipped with one .090 (approximately 3/32") diamond blade.



  • Maximum cutting depth is 1/4" (Possibly up to 3/8" with a new blade.) Does not cut deep enough for crack control.
  • Power: 120V 8A or 230V 3.9A 50/60hz
  • Size: 14.25" x 9.25" x 9.25" (LxWxH)
  • Weight: 13.72 lbs
  • Min. Side Cut: 4.5"
  • Min. Front Cut: 4"

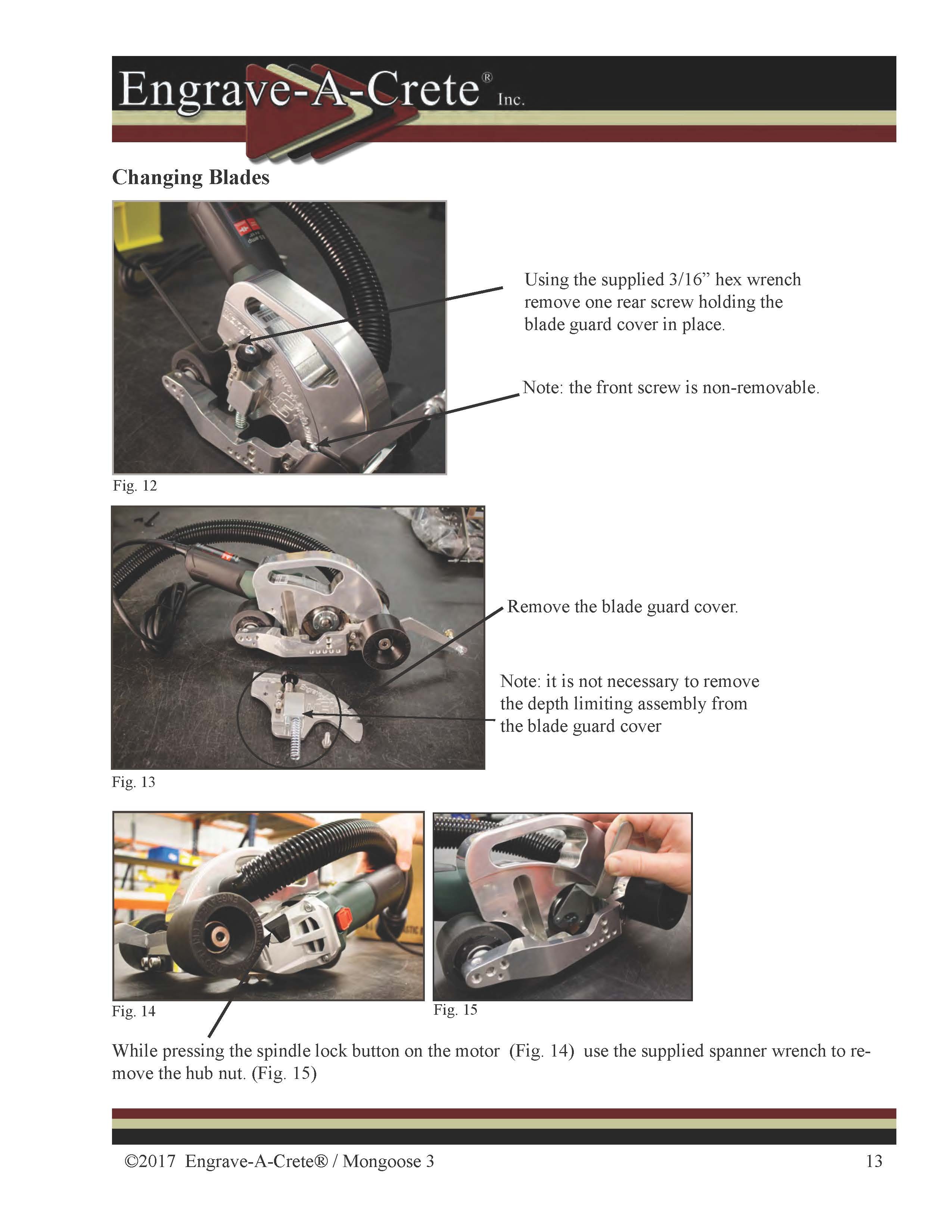

The Mongoose 3 ships with a 3.1" x .090" Premium Diamond Blade.
Blades are available in the following sizes:
3.1" x .090"
3.1" x .125"
3.1" x .250"
3.1" x .375"

Articulated Arm Conversion Kit

Articulated Arm Kit for Mongoose 3 gives you the ability to cut tighter more intricate curves in your designs. Includes the Arm, wheels, axles and easy to follow instructions.





Mongoose 3 Saw

  • Mongoose 3 Concrete Engraver
  • Premium Diamond Blade
$1295.00 (120v)
$1395.00 (230v)

Mongoose 3 Pro Pack

INCLUDES:

  • Mongoose 3 Concrete Engraver
  • Spiider Articulated Arm
  • .125 Premium USA Diamond Blade
  • .250 Premium USA Diamond Blade
  • .375 Premium USA Diamond Blade
  • Center Pivot and 6 Connecting Tubes
  • Trammel Point Layout Kit
  • Layout Design Manual and Training Manulal
  • Custom Storage Locker

$2,495.00 (120v)
